Model

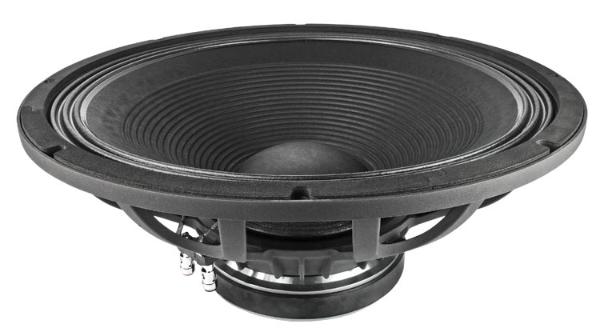

FaitalPRO 18HP1010-8
Rating
DIAM
18"
FS(Hz)
35
VAS(l)
215.3
QTS
0.4
PWR(W)
2000
SPL(dB)
95.3
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
215.3
Qts
0.4
Qms
7.8
Qes
0.42
Bl(Tm)
22
Mms(gr)
175
Cms(mm/N)
0.12
Rms(kg/s)
4.94
Le(mH)
1.8
Re(Ohm)
5.3
Sd(sq.mm)
113400
Vd(l)
1.111
X-max(mm)
10
X-mech(mm)
22
General Parameters
Diameter (inch)
18
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.12
Sensitivity(dB) 1-W
95.3
Sensitivity(dB) 2.8-V
97
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
460
Cutout Diameter (mm)
419
Mounting Depth (mm)
204
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
