Model

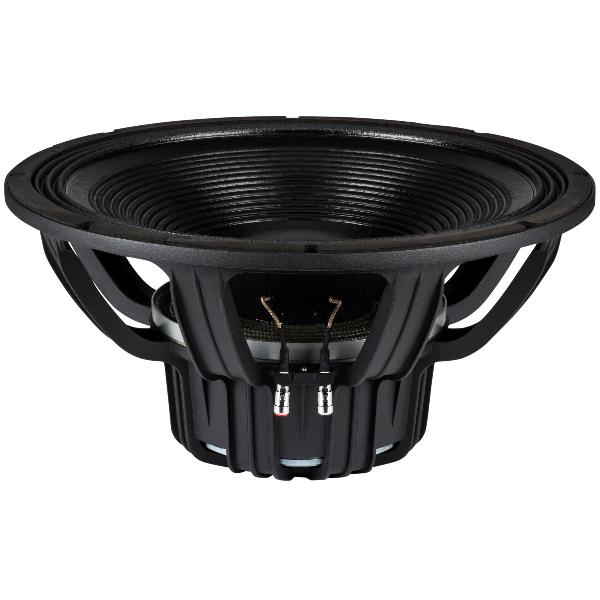

FaitalPRO 18XL1600-8
Rating
DIAM
18"
FS(Hz)
32
VAS(l)
184.7
QTS
0.36
PWR(W)
3200
SPL(dB)
94
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
184.7
Qts
0.36
Qms
9.3
Qes
0.37
Bl(Tm)
26.7
Mms(gr)
240
Cms(mm/N)
0.103
Rms(kg/s)
5.189
Le(mH)
0
Re(Ohm)
5.4
Sd(sq.mm)
112444
Vd(l)
1.453
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
3200
RMS Power(W.)
1600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
7.3
Total Diameter (mm)
0
Cutout Diameter (mm)
420
Mounting Depth (mm)
217
Magnet Diameter (mm)
201
Optimum Enclosures
Enclosures
Vented, BP6P
