Model

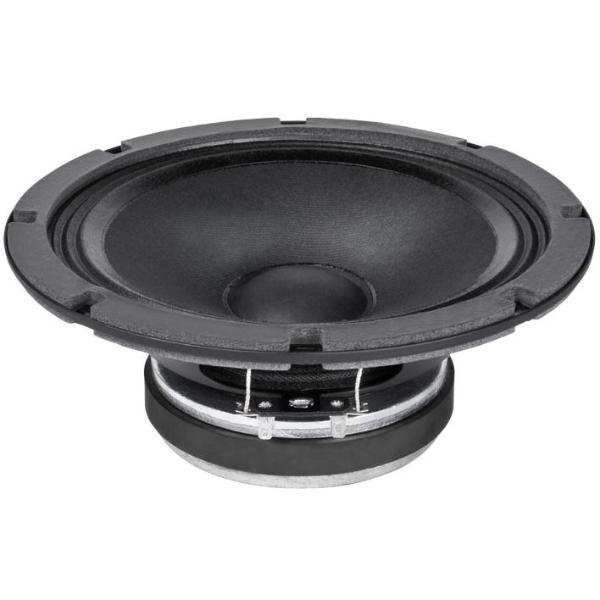

FaitalPRO 8FE200-4
Rating
DIAM
8"
FS(Hz)
80
VAS(l)
13.4
QTS
0.44
PWR(W)
260
SPL(dB)
95
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
80
Vas(l)
13.4
Qts
0.44
Qms
8.7
Qes
0.46
Bl(Tm)
7
Mms(gr)
15
Cms(mm/N)
0.259
Rms(kg/s)
0.88
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
19100
Vd(l)
0.088
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
260
RMS Power(W.)
130
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.6
Total Diameter (mm)
0
Cutout Diameter (mm)
176
Mounting Depth (mm)
81
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
BP6P, Vented
