Model

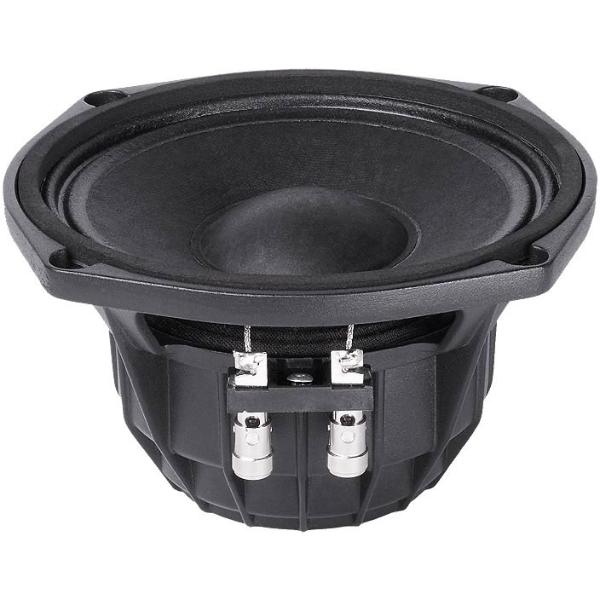

FaitalPRO M5N8-80-12
Rating
DIAM
5"
FS(Hz)
180
VAS(l)
1.2
QTS
0.45
PWR(W)
160
SPL(dB)
99
IMP(Ohm)
12x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
180
Vas(l)
1.2
Qts
0.45
Qms
2.7
Qes
0.54
Bl(Tm)
11.3
Mms(gr)
8
Cms(mm/N)
0.095
Rms(kg/s)
3.45
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
9420
Vd(l)
0.026
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
12
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
99
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.6
Total Diameter (mm)
0
Cutout Diameter (mm)
127
Mounting Depth (mm)
72
Magnet Diameter (mm)
93
Optimum Enclosures
Enclosures
Vented, BP6P
