Model

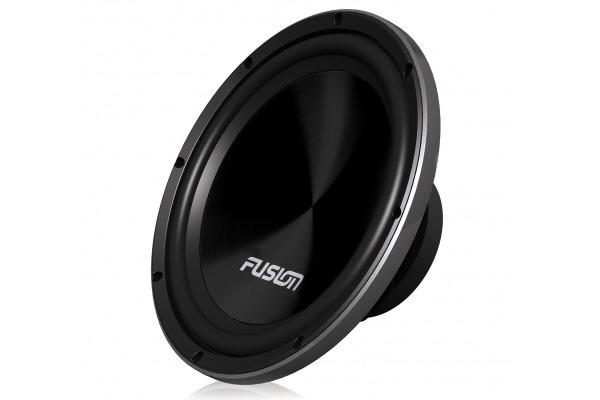

Fusion EN-SW122
Rating
DIAM
12"
FS(Hz)
34.4
VAS(l)
60.7
QTS
1.08
PWR(W)
1000
SPL(dB)
84.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
60.7
Qts
1.08
Qms
9.23
Qes
1.22
Bl(Tm)
9.6
Mms(gr)
141
Cms(mm/N)
0.152
Rms(kg/s)
3.12
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
53063
Vd(l)
0.318
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
138
Magnet Diameter (mm)
279
Optimum Enclosures
Enclosures
Closed, BP4
