Model

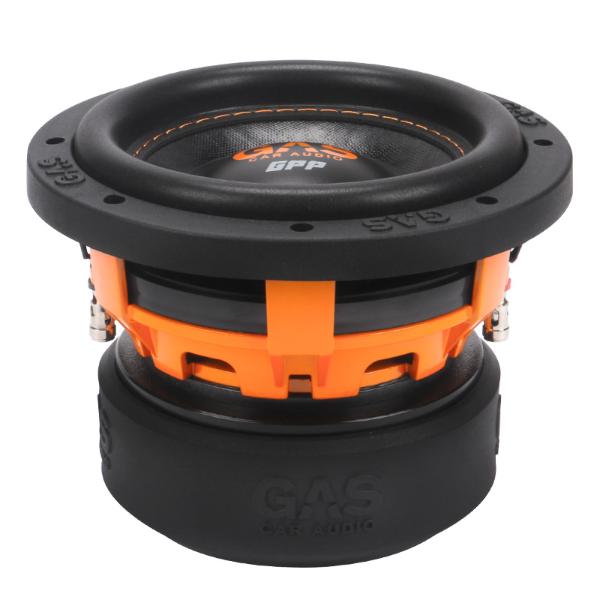

GAS GPP65D1
Rating
DIAM
6"
FS(Hz)
49.1
VAS(l)
2.7
QTS
0.65
PWR(W)
700
SPL(dB)
78.5
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49.1
Vas(l)
2.7
Qts
0.65
Qms
9.3
Qes
0.7
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.04
Sensitivity(dB) 1-W
78.5
Sensitivity(dB) 2.8-V
83.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
