Model

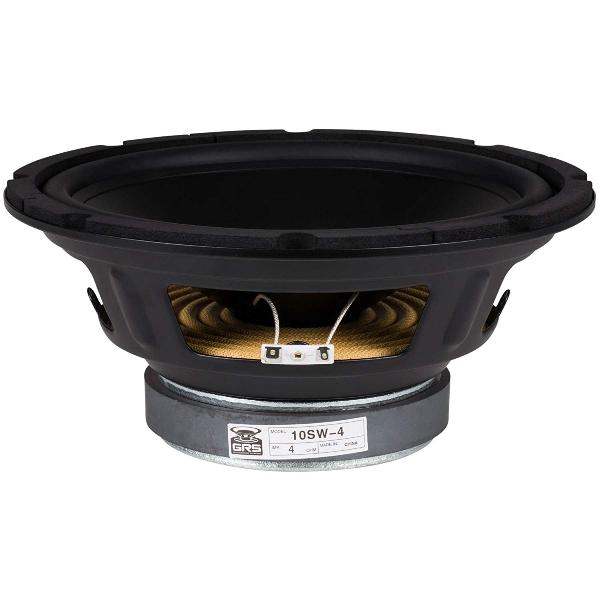

GRS 10SW-4
Rating
DIAM
10"
FS(Hz)
34
VAS(l)
57.5
QTS
0.63
PWR(W)
240
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
57.5
Qts
0.63
Qms
3.4
Qes
0.78
Bl(Tm)
8.4
Mms(gr)
59
Cms(mm/N)
0.33
Rms(kg/s)
3.69
Le(mH)
1.23
Re(Ohm)
4.1
Sd(sq.mm)
35600
Vd(l)
0.285
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
240
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
89.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
254
Cutout Diameter (mm)
229
Mounting Depth (mm)
127
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
