Model

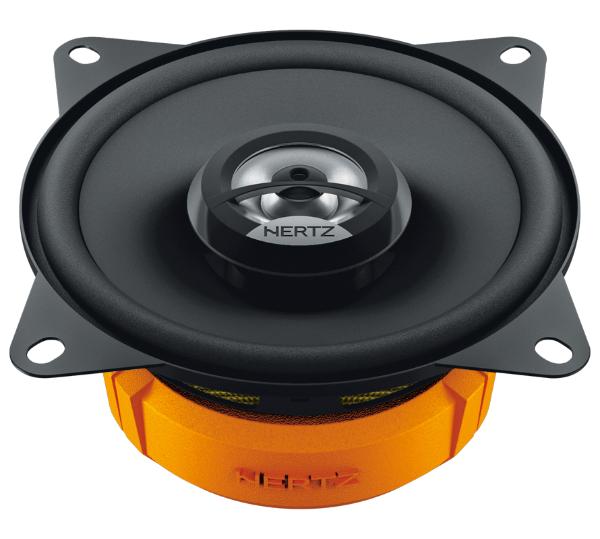

Hertz DCX 100.3
Rating
DIAM
4"
FS(Hz)
115
VAS(l)
1.7
QTS
0.79
PWR(W)
60
SPL(dB)
86.1
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
115
Vas(l)
1.7
Qts
0.786
Qms
4.3
Qes
0.96
Bl(Tm)
3.5
Mms(gr)
5
Cms(mm/N)
0.38
Rms(kg/s)
0.84
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
5616
Vd(l)
0.008
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
90
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
94
Mounting Depth (mm)
43
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
