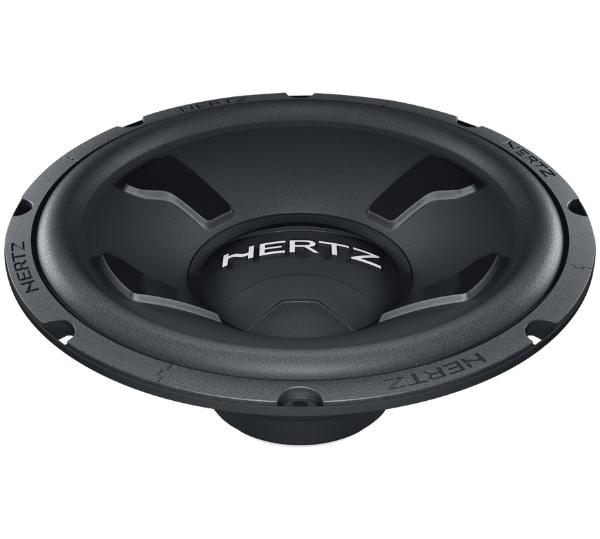

Hertz DS 25.3
Hertz DS 25.3
Model

Hertz DS 25.3

Rating
DIAM
10"
FS(Hz)
36
VAS(l)
34
QTS
0.92
PWR(W)
600
SPL(dB)
83.3
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
36
Vas(l)
34
Qts
0.92
Qms
5
Qes
1.13
Bl(Tm)
8.5
Mms(gr)
106
Cms(mm/N)
0.184
Rms(kg/s)
4.795
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
36096
Vd(l)
0.325
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.2
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
104
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
