Model

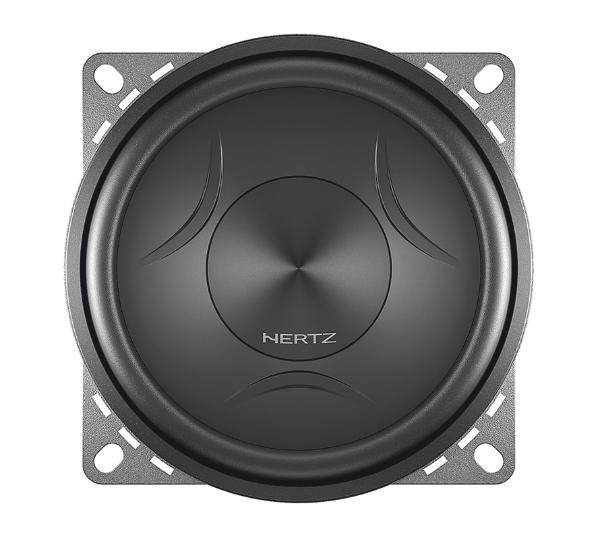

Hertz EMV 100.5
Rating
DIAM
4"
FS(Hz)
104
VAS(l)
2.3
QTS
0.68
PWR(W)
120
SPL(dB)
86.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
104
Vas(l)
2.3
Qts
0.68
Qms
3.1
Qes
0.87
Bl(Tm)
3.5
Mms(gr)
5
Cms(mm/N)
0.442
Rms(kg/s)
1.12
Le(mH)
0.15
Re(Ohm)
3.1
Sd(sq.mm)
6071
Vd(l)
0.009
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
120
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
90.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
130
Cutout Diameter (mm)
93
Mounting Depth (mm)
44
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
