Model

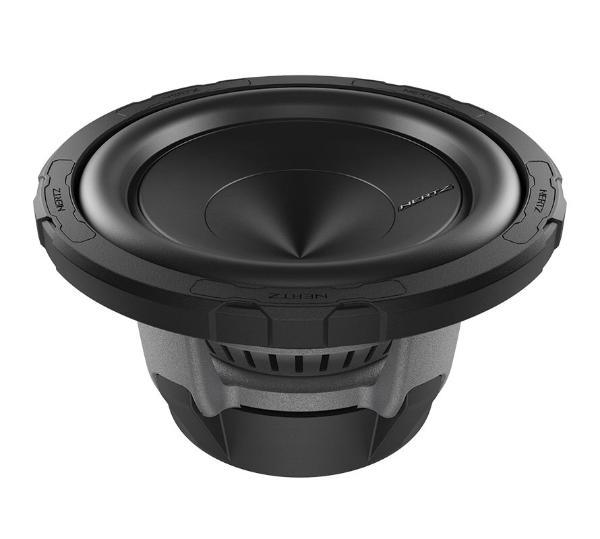

Hertz ES 200.5
Rating
DIAM
8"
FS(Hz)
40
VAS(l)
10.5
QTS
0.5
PWR(W)
600
SPL(dB)
82.9
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
10.5
Qts
0.5
Qms
10.57
Qes
0.53
Bl(Tm)
10.9
Mms(gr)
80
Cms(mm/N)
0.198
Rms(kg/s)
1.902
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
19337
Vd(l)
0.174
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.82
Total Diameter (mm)
0
Cutout Diameter (mm)
181
Mounting Depth (mm)
106
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
