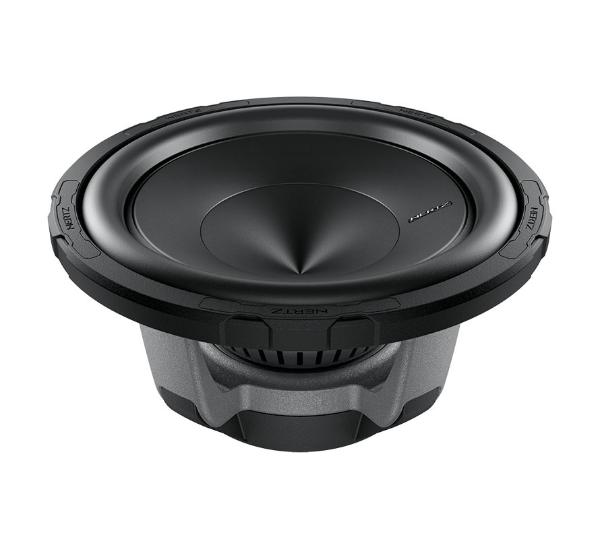

Hertz ES 250.5
Hertz ES 250.5
Model

Hertz ES 250.5

Rating
DIAM
10"
FS(Hz)
35
VAS(l)
27.7
QTS
0.6
PWR(W)
750
SPL(dB)
84.5
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
27.7
Qts
0.6
Qms
9.6
Qes
0.64
Bl(Tm)
10.8
Cms(mm/N)
0.18
Rms(kg/s)
2.634
Le(mH)
0
Mms(gr)
115
Vd(l)
0.296
Sd(sq.mm)
32940
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
3

General Parameters

Diameter (inch)
10
Max Power(W.)
750
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0.65
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
119
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
