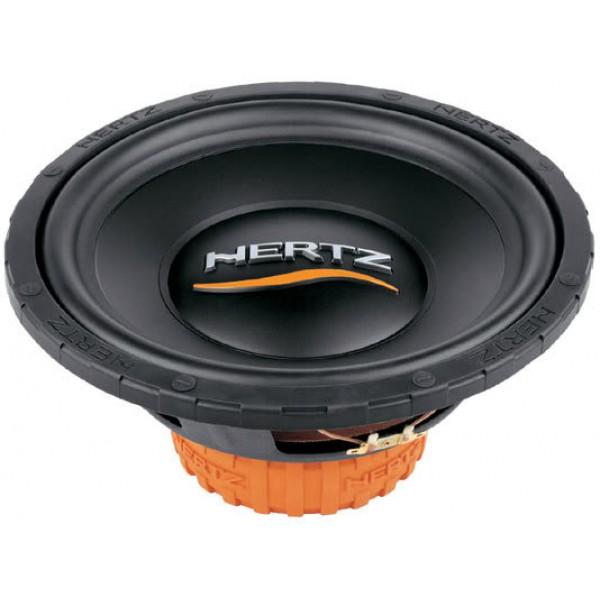

Hertz ES 300
Hertz ES 300
Model

Hertz ES 300

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
12"
FS(Hz)
28
VAS(l)
89.4
QTS
0.38
PWR(W)
700
SPL(dB)
94
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
28
Vas(l)
89.4
Qts
0.38
Qms
3.45
Qes
0.43
Bl(Tm)
13.5
Cms(mm/N)
0.21
Rms(kg/s)
7.71
Le(mH)
0
Mms(gr)
151
Vd(l)
0.493
Sd(sq.mm)
54788
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
2.9

General Parameters

Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.8
Total Diameter (mm)
0
Cutout Diameter (mm)
277
Mounting Depth (mm)
132
Magnet Diameter (mm)
140

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
