Model

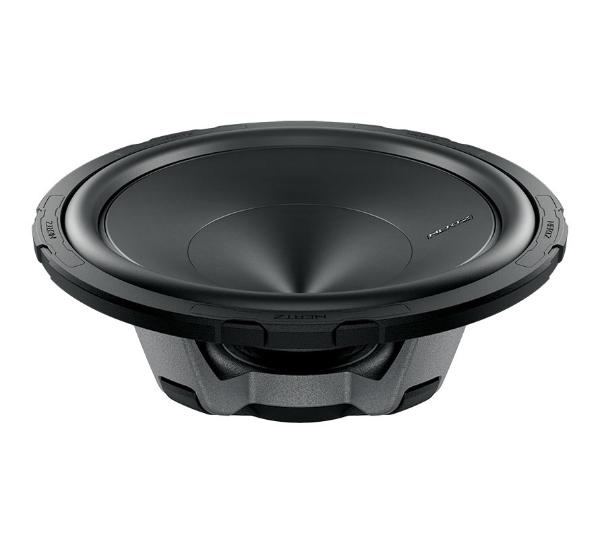

Hertz ES 380.5
Rating
DIAM
15"
FS(Hz)
32
VAS(l)
98.8
QTS
0.9
PWR(W)
1350
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
98.8
Qts
0.9
Qms
13
Qes
0.97
Bl(Tm)
12.7
Mms(gr)
234
Cms(mm/N)
0.106
Rms(kg/s)
3.619
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
81068
Vd(l)
0.73
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1350
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
151
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
