Model

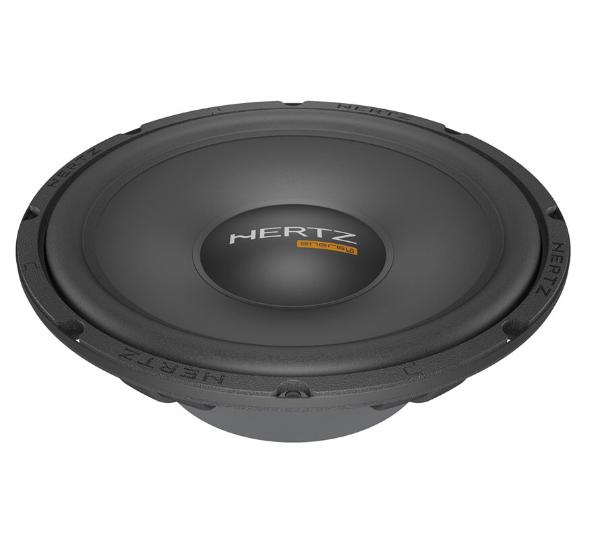

Hertz ES F25.5
Rating
DIAM
10"
FS(Hz)
39
VAS(l)
40.2
QTS
0.44
PWR(W)
900
SPL(dB)
88.7
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
40.2
Qts
0.44
Qms
4.71
Qes
0.49
Bl(Tm)
10.8
Mms(gr)
82
Cms(mm/N)
0.203
Rms(kg/s)
4.266
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
37367
Vd(l)
0.224
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.7
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
85
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
