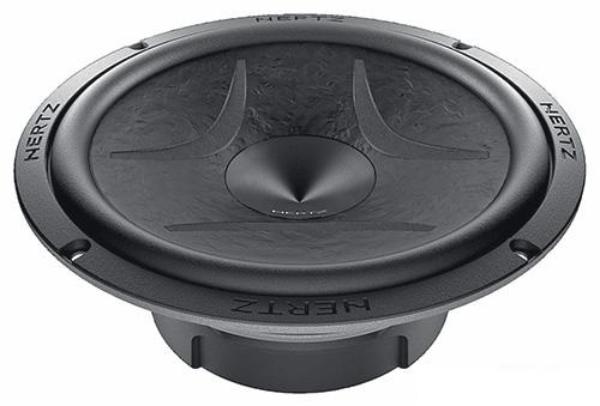

Hertz EV 165L.5
Hertz EV 165L.5
Model

Hertz EV 165L.5

Rating
DIAM
6"
FS(Hz)
65
VAS(l)
11
QTS
0.72
PWR(W)
210
SPL(dB)
87.2
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
65
Vas(l)
11
Qts
0.72
Qms
3.8
Qes
0.888
Bl(Tm)
4.8
Mms(gr)
15
Cms(mm/N)
0.405
Rms(kg/s)
1.59
Le(mH)
0.21
Re(Ohm)
3.3
Sd(sq.mm)
13839
Vd(l)
0.055
X-max(mm)
4
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
210
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
91

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
142
Mounting Depth (mm)
65
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
