Model

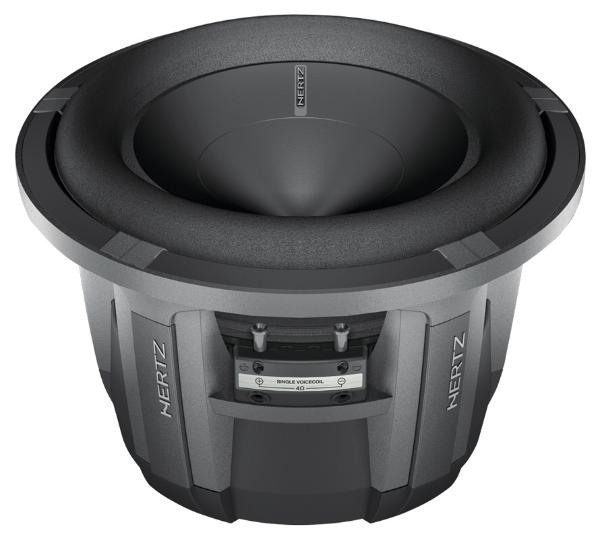

Hertz HX 250
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
24
QTS
0.44
PWR(W)
900
SPL(dB)
85.8
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
24
Qts
0.44
Qms
4.7
Qes
0.49
Bl(Tm)
13.2
Mms(gr)
129
Cms(mm/N)
0.143
Rms(kg/s)
6.38
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
34400
Vd(l)
0.482
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
90.3
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
150
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
