Model

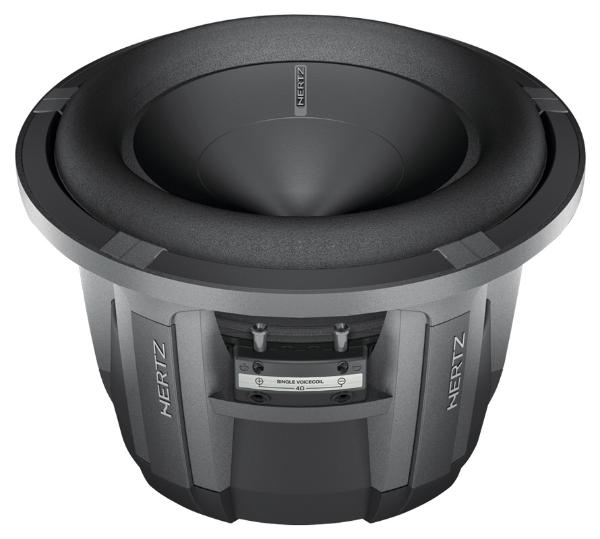

Hertz HX 250D
Rating
DIAM
10"
FS(Hz)
34
VAS(l)
20.5
QTS
0.37
PWR(W)
900
SPL(dB)
85
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
20.5
Qts
0.37
Qms
6.8
Qes
0.39
Bl(Tm)
23.3
Mms(gr)
177
Cms(mm/N)
0.124
Rms(kg/s)
5.561
Le(mH)
0
Re(Ohm)
5.6
Sd(sq.mm)
34175
Vd(l)
0.478
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
150
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Vented, BP6
