Model

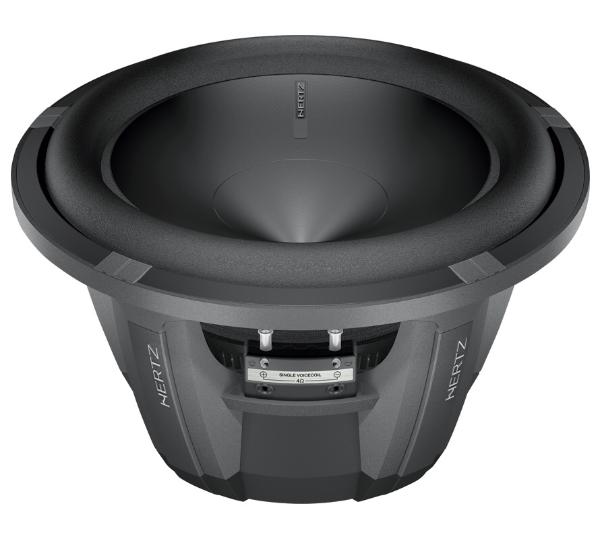

Hertz HX 300
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
49.6
QTS
0.47
PWR(W)
1200
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
49.6
Qts
0.47
Qms
4.4
Qes
0.53
Bl(Tm)
13.6
Mms(gr)
167
Cms(mm/N)
0.139
Rms(kg/s)
7.87
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
50170
Vd(l)
0.702
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.9
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
162
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
