Model

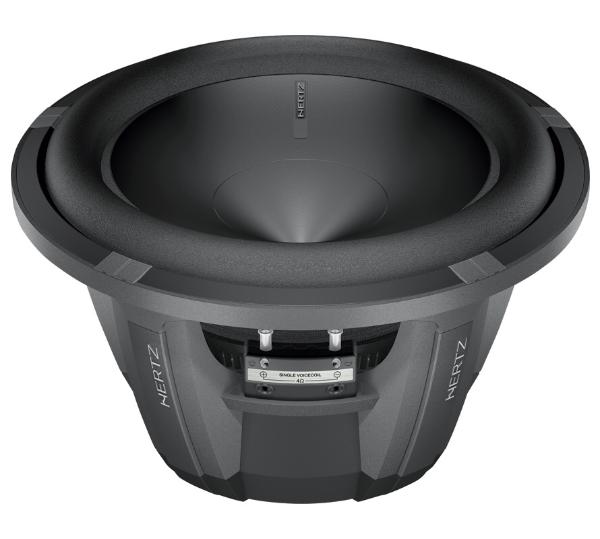

Hertz HX 300D
Rating
DIAM
12"
FS(Hz)
31
VAS(l)
43.5
QTS
0.41
PWR(W)
1200
SPL(dB)
86.5
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
43.5
Qts
0.41
Qms
6.9
Qes
0.44
Bl(Tm)
23.3
Mms(gr)
212
Cms(mm/N)
0.124
Rms(kg/s)
5.985
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
49717
Vd(l)
0.696
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.9
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
162
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
