Model

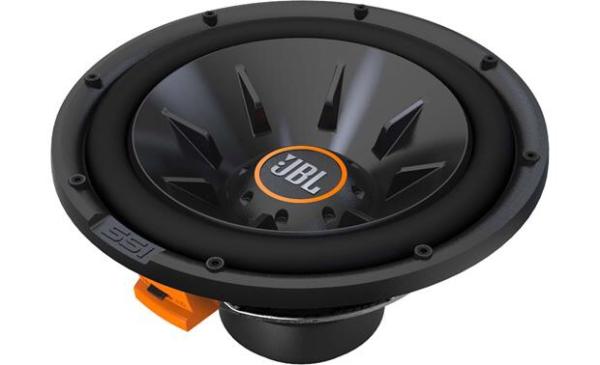

JBL S2-1024-2
Rating
DIAM
10"
FS(Hz)
29.9
VAS(l)
32.3
QTS
0.43
PWR(W)
1000
SPL(dB)
92
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
29.9
Vas(l)
32.3
Qts
0.43
Qms
4.1
Qes
0.48
Bl(Tm)
10.2
Mms(gr)
134
Cms(mm/N)
0.211
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
33010
Vd(l)
0.31
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
142
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
