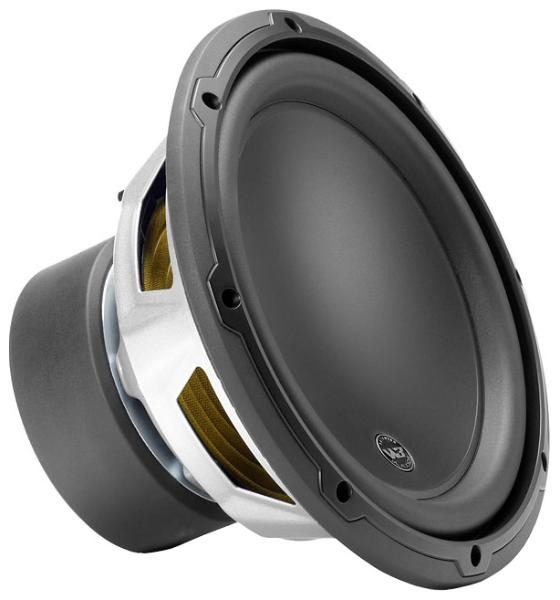

JL Audio 10W3V3-4
JL Audio 10W3V3-4
Model

JL Audio 10W3V3-4

Rating
DIAM
10"
FS(Hz)
31.5
VAS(l)
32.2
QTS
0.48
PWR(W)
1000
SPL(dB)
84.9
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
31.5
Vas(l)
32.2
Qts
0.485
Qms
7.017
Qes
0.521
Bl(Tm)
13.5
Cms(mm/N)
0.191
Rms(kg/s)
3.771
Le(mH)
0
Mms(gr)
134
Vd(l)
0.483
Sd(sq.mm)
34500
X-max(mm)
14
X-mech(mm)
0
Re(Ohm)
3.6

General Parameters

Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.39
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
151
Magnet Diameter (mm)
133

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
