Model

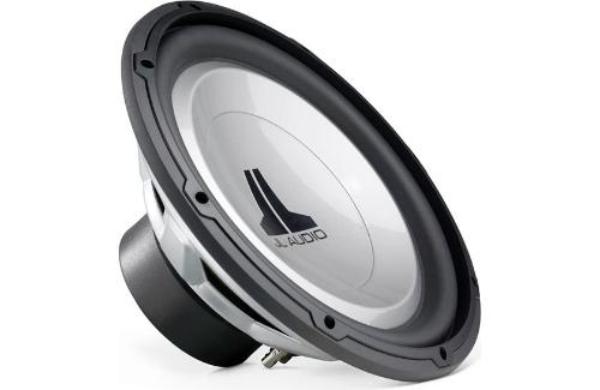

JL Audio 12W1V2-8
Rating
DIAM
12"
FS(Hz)
25
VAS(l)
100.2
QTS
0.46
PWR(W)
600
SPL(dB)
86.8
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
100.2
Qts
0.458
Qms
6.45
Qes
0.493
Bl(Tm)
18.5
Mms(gr)
159
Cms(mm/N)
0.256
Rms(kg/s)
3.859
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
52500
Vd(l)
0.499
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
87.5
Mounting Information
Speaker Displacement (l)
0.991
Total Diameter (mm)
318
Cutout Diameter (mm)
281
Mounting Depth (mm)
130
Magnet Diameter (mm)
121
Optimum Enclosures
Enclosures
Closed, BP4
