Model

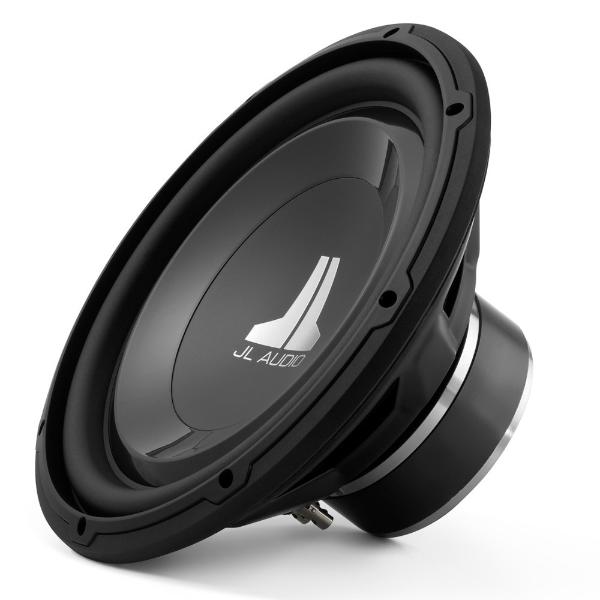

JL Audio 12W1V3-2
Rating
DIAM
12"
FS(Hz)
26.6
VAS(l)
72
QTS
0.52
PWR(W)
600
SPL(dB)
85.9
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
26.6
Vas(l)
72
Qts
0.52
Qms
8.731
Qes
0.553
Bl(Tm)
11.4
Mms(gr)
195
Cms(mm/N)
0.184
Rms(kg/s)
3.731
Le(mH)
0
Re(Ohm)
2.2
Sd(sq.mm)
52500
Vd(l)
0.58
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.47
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
137
Magnet Diameter (mm)
133
Optimum Enclosures
Enclosures
Closed, BP4
