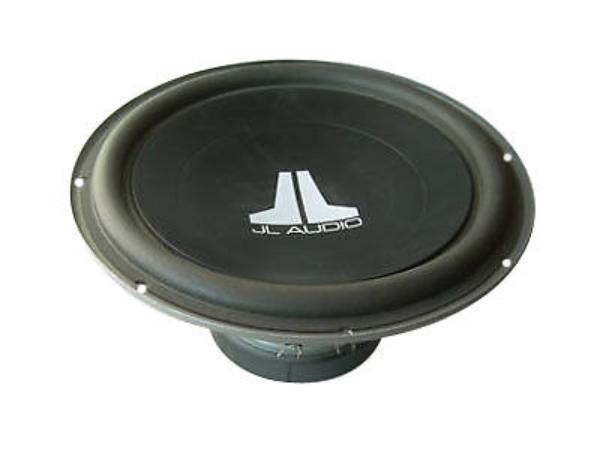

JL Audio 12W3V2-D2
JL Audio 12W3V2-D2
Model

JL Audio 12W3V2-D2

Rating
DIAM
12"
FS(Hz)
24.3
VAS(l)
103.4
QTS
0.45
PWR(W)
600
SPL(dB)
86.8
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24.3
Vas(l)
103.4
Qts
0.449
Qms
8.483
Qes
0.474
Bl(Tm)
14.1
Mms(gr)
163
Cms(mm/N)
0.264
Rms(kg/s)
2.925
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
52600
Vd(l)
0.684
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
167
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
