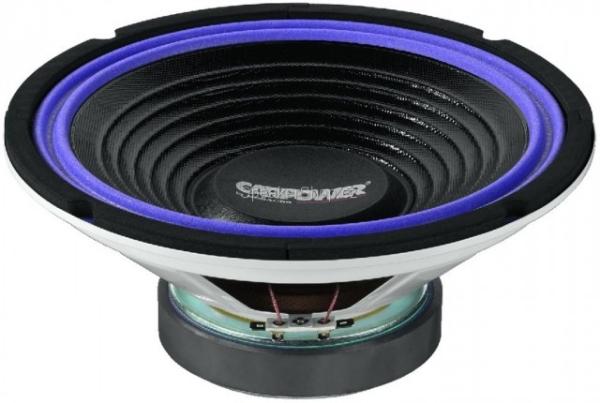

Monacor CARPOWER SP-252C
Monacor CARPOWER SP-252C
Model

Monacor CARPOWER SP-252C

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
10"
FS(Hz)
35
VAS(l)
96
QTS
0.41
PWR(W)
350
SPL(dB)
91.3
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
96
Qts
0.41
Qms
3.1
Qes
0.471
Bl(Tm)
8.1
Cms(mm/N)
0.55
Rms(kg/s)
2.65
Le(mH)
0.4
Mms(gr)
38
Vd(l)
0.176
Sd(sq.mm)
35300
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
3.7

General Parameters

Diameter (inch)
10
Max Power(W.)
350
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.84
Sensitivity(dB) 1-W
91.3
Sensitivity(dB) 2.8-V
94.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
256
Cutout Diameter (mm)
231
Mounting Depth (mm)
110
Magnet Diameter (mm)
125

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
