Model

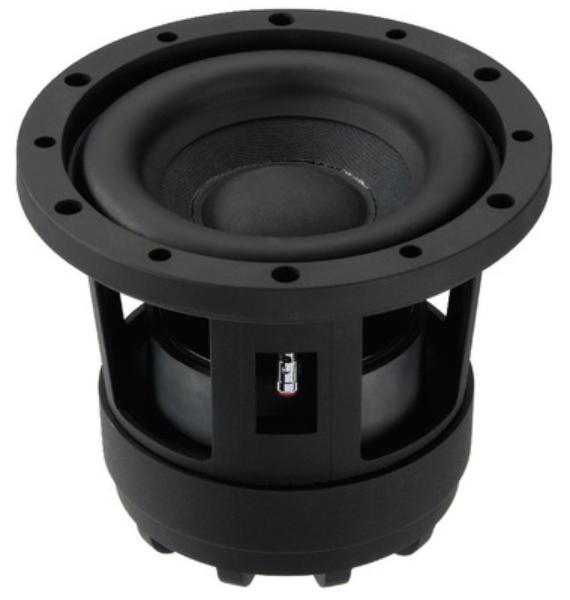

Monacor RAPTOR-6
Rating
DIAM
6"
FS(Hz)
53
VAS(l)
6.9
QTS
0.36
PWR(W)
300
SPL(dB)
85.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
6.9
Qts
0.36
Qms
2.2
Qes
0.43
Bl(Tm)
7.6
Mms(gr)
23
Cms(mm/N)
0.392
Rms(kg/s)
3.481
Le(mH)
0.6
Re(Ohm)
3.2
Sd(sq.mm)
11300
Vd(l)
0.102
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
182
Cutout Diameter (mm)
144
Mounting Depth (mm)
136
Magnet Diameter (mm)
133
Optimum Enclosures
Enclosures
Vented, BP6
