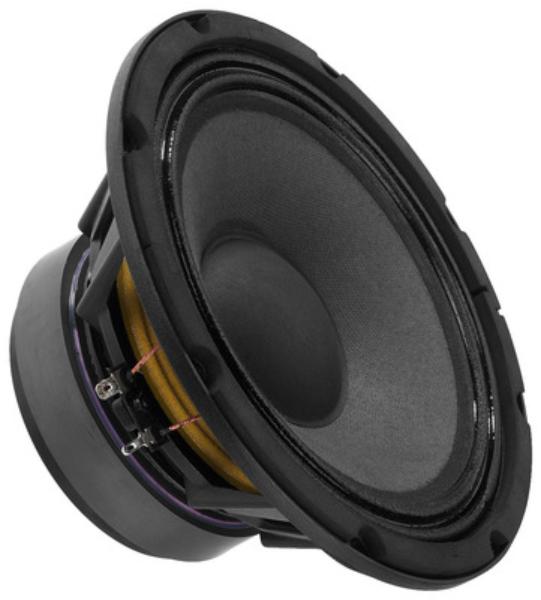

Monacor SP-8/150PRO
Monacor SP-8/150PRO
Model

Monacor SP-8/150PRO

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
8"
FS(Hz)
56
VAS(l)
22
QTS
0.32
PWR(W)
300
SPL(dB)
91.6
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
56
Vas(l)
22
Qts
0.32
Qms
1.52
Qes
0.41
Bl(Tm)
12
Cms(mm/N)
0.35
Rms(kg/s)
5.278
Le(mH)
2
Mms(gr)
23
Vd(l)
0.128
Sd(sq.mm)
21300
X-max(mm)
6
X-mech(mm)
10
Re(Ohm)
7.2

General Parameters

Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.91
Sensitivity(dB) 1-W
91.6
Sensitivity(dB) 2.8-V
92.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
210
Cutout Diameter (mm)
185
Mounting Depth (mm)
100
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6
