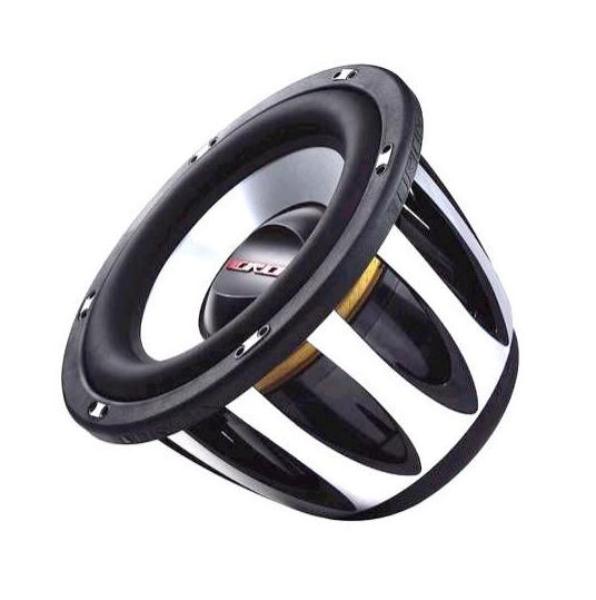

Orion H2 12.2
Orion H2 12.2
Model

Orion H2 12.2

Rating
DIAM
12"
FS(Hz)
30.5
VAS(l)
30.2
QTS
0.58
PWR(W)
2500
SPL(dB)
83.2
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
30.5
Vas(l)
30.2
Qts
0.58
Qms
8.56
Qes
0.622
Bl(Tm)
16.7
Mms(gr)
247
Cms(mm/N)
0.11
Rms(kg/s)
6.555
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
44000
Vd(l)
1.276
X-max(mm)
29
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
86.7

Mounting Information

Speaker Displacement (l)
4.531
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
203
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
