Model

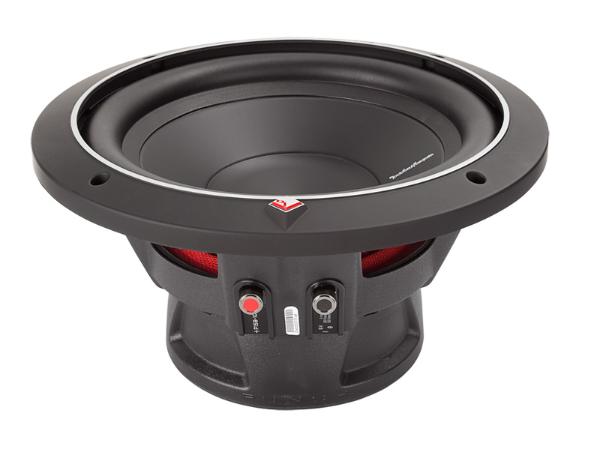

Rockford Fosgate P1S4-10
Rating
DIAM
10"
FS(Hz)
30
VAS(l)
40
QTS
0.52
PWR(W)
500
SPL(dB)
84.2
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
40
Qts
0.52
Qms
3
Qes
0.629
Bl(Tm)
12.1
Mms(gr)
137
Cms(mm/N)
0.206
Rms(kg/s)
8.583
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
37000
Vd(l)
0.333
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.6
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
135
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
