Model

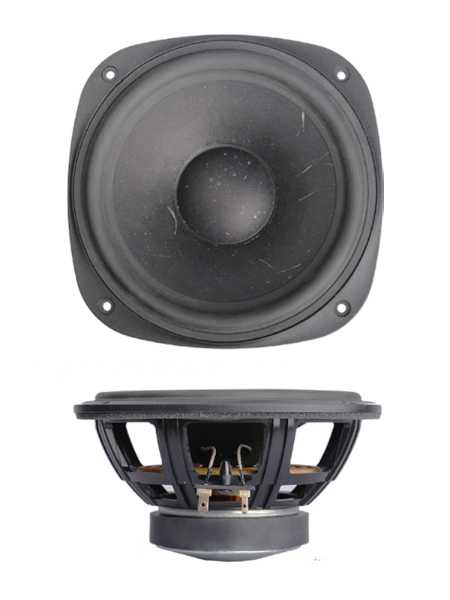

SB Acoustics SB16PFC25-8
Rating
DIAM
6"
FS(Hz)
38
VAS(l)
27
QTS
0.4
PWR(W)
80
SPL(dB)
86.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
27
Qts
0.4
Qms
2.5
Qes
0.48
Bl(Tm)
6.2
Mms(gr)
14
Cms(mm/N)
1.271
Rms(kg/s)
1.4
Le(mH)
0.77
Re(Ohm)
5.6
Sd(sq.mm)
12400
Vd(l)
0.056
X-max(mm)
5
X-mech(mm)
5
General Parameters
Diameter (inch)
6
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
88.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
160
Cutout Diameter (mm)
145
Mounting Depth (mm)
77
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
