Model

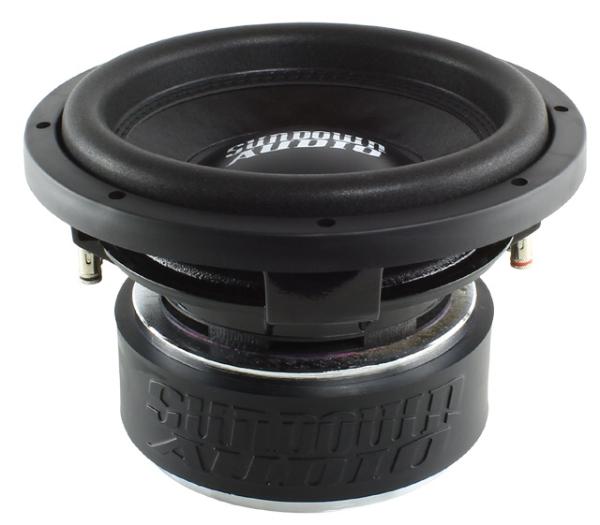

Sundown Audio SA 10 D2(REV3)
Rating
DIAM
10"
FS(Hz)
35.4
VAS(l)
10.1
QTS
0.48
PWR(W)
1200
SPL(dB)
81
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.4
Vas(l)
10.1
Qts
0.48
Qms
5.41
Qes
0.53
Bl(Tm)
20.4
Mms(gr)
230
Cms(mm/N)
0.088
Rms(kg/s)
9.456
Le(mH)
0
Re(Ohm)
4.3
Sd(sq.mm)
28447
Vd(l)
0.54
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
