Model

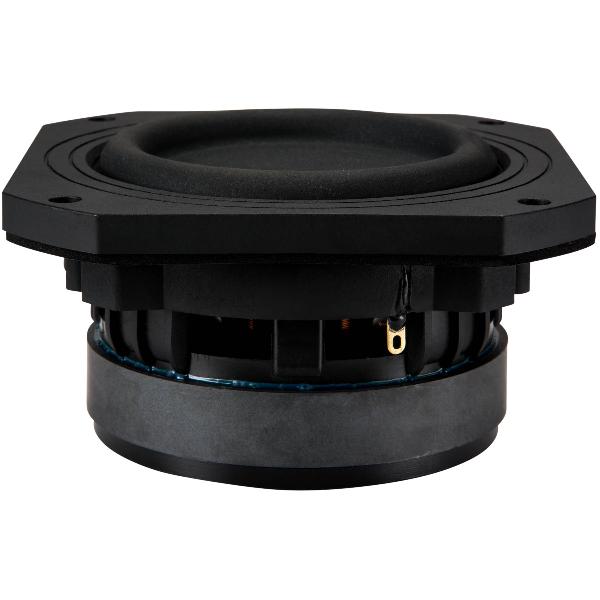

Tang Band W5-2053
Rating
DIAM
5"
FS(Hz)
35
VAS(l)
3.9
QTS
0.33
PWR(W)
80
SPL(dB)
78.5
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
3.9
Qts
0.33
Qms
4.7
Qes
0.355
Bl(Tm)
9.3
Mms(gr)
43
Cms(mm/N)
0.484
Rms(kg/s)
1.868
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
7346
Vd(l)
0.059
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
78.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
129
Mounting Depth (mm)
79
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6
