Single 10-inch Vented / Bass-Reflex Subwoofer Box - 35 L / 38 Hz

  1. Ready boxes
  2. Single 10-inch Vented / Bass-Reflex Subwoofer Box - 35 L / 38 Hz
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

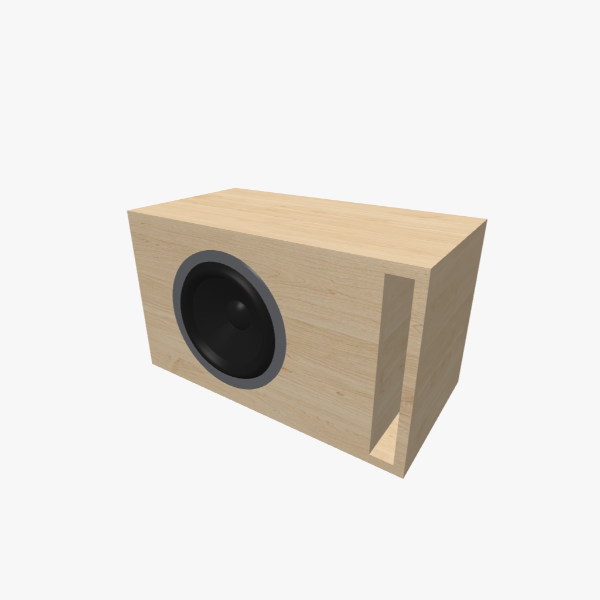

Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, solid exterior, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).
Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, solid exterior, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).
Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, solid exterior, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).
Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, solid exterior, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).
Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, solid exterior, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).
Single 10-inch round vented subwoofer box, 35 L chamber at 38 Hz with one L-shaped slot port and internal brace, disassembled parts, 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in).

Description

This vented (bass-reflex) enclosure is designed for a single 10-inch round subwoofer, featuring a 35 L chamber tuned to 38 Hz. Built from 18 mm (3/4 inch) material in a simple rectangle shape, the cabinet measures 591 × 345 × 310 mm (23.7 × 13.63 × 12.26 in). One internal brace reinforces the cabinet and reduces panel vibration, making it suitable for high-output systems. The design utilizes one L-shaped slot port with an area optimized for high-output, large-excursion drivers and SPL-oriented use with high airflow demand. It serves as a general-purpose home subwoofer enclosure for music and stereo systems that balances bass extension, size, output, and low distortion. It is also ideal for everyday car-audio use, accounting for limited trunk space, installation constraints, and balanced sound.

Volume & tuning

35 l
Internal volume
38 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
18
Material thickness (inch)
3/4
Box dimensions (mm)
592 × 346 × 311
Box dimensions (inch)
23.7 × 13.63 × 12.26
Max RMS speaker power up to
2900 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10"

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
Appearances
View all
Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
