Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box

  1. Ready boxes
  2. Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

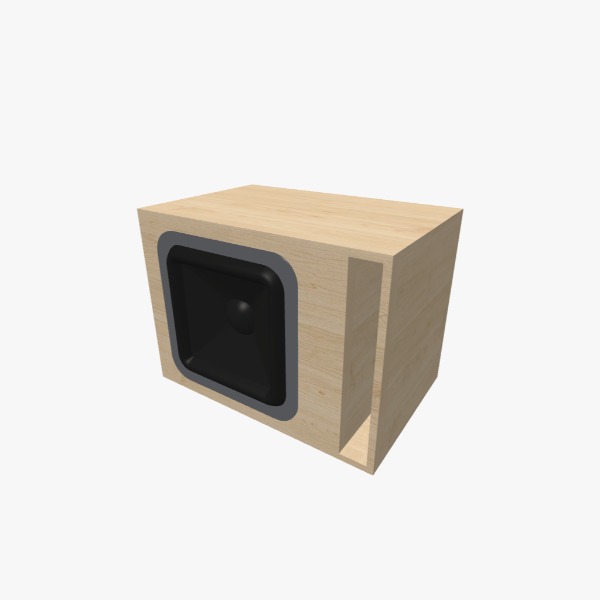

Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, solid exterior, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, solid exterior, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, solid exterior, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, solid exterior, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, solid exterior, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box with 65 L chamber tuned to 33 Hz and L-shaped slot port, disassembled parts, 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in).

Description

This Vented / Bass-Reflex enclosure is designed for a single 15-inch rectangular subwoofer, featuring a 65 L chamber tuned to 33 Hz. Constructed from 16 mm (5/8 inch) material with external dimensions of 645 × 473 × 426 mm (25.36 × 18.65 × 16.79 in), the simple rectangular cabinet includes a double-thickness front baffle and one internal brace to increase rigidity and reduce vibration in high-output systems. It utilizes one L-shaped slot port with an area optimized for high-airflow demand and large-excursion SPL drivers. This versatile design serves as a general-purpose home subwoofer for music and stereo systems, balancing extension and low distortion, while also remaining suitable for everyday car-audio use where trunk space and installation constraints are key.

Volume & tuning

65 l
Internal volume
33 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
645 × 474 × 426
Box dimensions (inch)
25.36 × 18.65 × 16.79
Max RMS speaker power up to
2100 W
Speaker mounting panel layers
Double
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
15" Rectangle

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
28502
