Single 15-inch Vented / Bass-Reflex Subwoofer Box - 65 L

PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

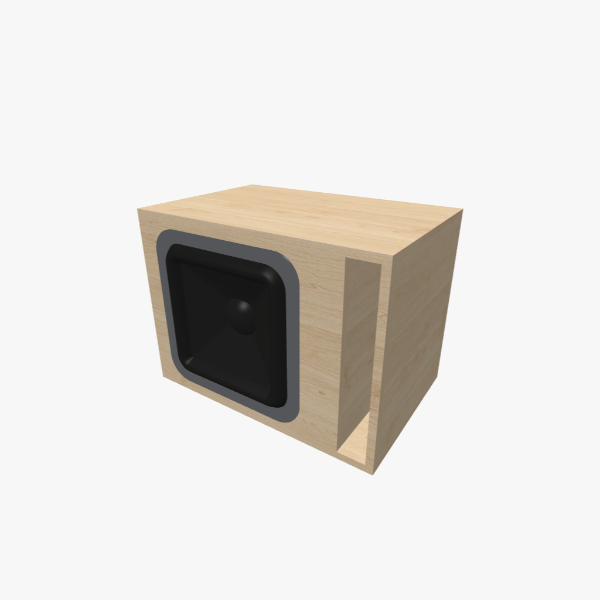

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, solid exterior, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, solid exterior, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, solid exterior, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, solid exterior, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, solid exterior, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Single 15-inch rectangular Vented / Bass-Reflex subwoofer box, 65 L volume, 35 Hz tuning with one L-shaped slot port, disassembled parts, 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in).

Description

This Vented / Bass-Reflex enclosure is specifically designed for a single 15-inch rectangular subwoofer, featuring a 65 L chamber professionally tuned to 35 Hz. Built from 18 mm (3/4 inch) material with a simple rectangle shape, the cabinet measures 633 × 466 × 419 mm (25.28 × 18.39 × 16.55 in). One internal brace reinforces the structure and minimizes panel vibration, making it ideal for high-output systems. The design utilizes one L-shaped slot port with an area optimized for high-excursion drivers and SPL-oriented use requiring high airflow. Whether used as a general-purpose home subwoofer to balance bass extension and low distortion or for everyday car-audio where trunk space and installation constraints are key, this box provides a perfectly balanced sound.

Volume & tuning

65 l

Internal volume

35 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

18

Material thickness (inch)

3/4

Box dimensions (mm)

634 × 466 × 420

Box dimensions (inch)

25.28 × 18.39 × 16.55

Max RMS speaker power up to

700 W

Speaker mounting panel layers

Single

Number of bands

1

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Single

Number of speakers

1

Speaker size

15" Rectangle

Port

Port type

Rectangular

Port count

1

Port area (sq.mm)

28502

Appearances

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
