Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box - 65 L / 33 Hz

  1. Ready boxes
  2. Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box - 65 L / 33 Hz
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

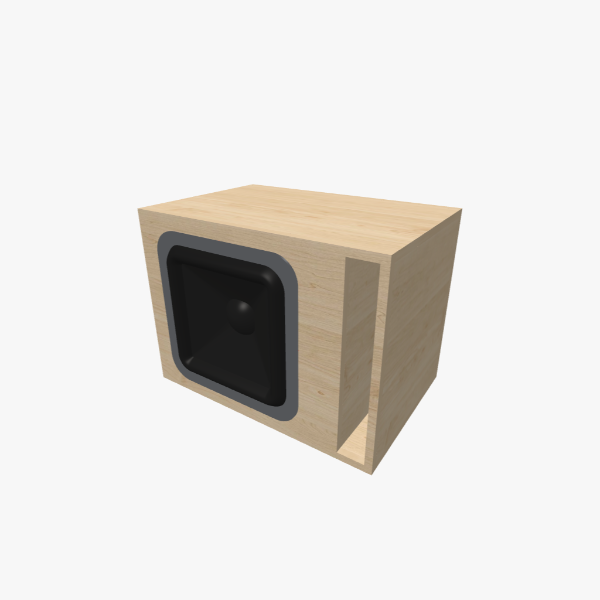

Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - solid exterior, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - solid exterior, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - solid exterior, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - solid exterior, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - solid exterior, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).
Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box, 65 L, 33 Hz, with one L-shaped slot port and one internal brace - disassembled parts, 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in).

Description

This vented (bass-reflex) enclosure is designed for a single 15-inch rectangular subwoofer, featuring a 65 L chamber tuned to 33 Hz. Built from 18 mm (3/4 inch) material in a simple rectangle shape, the cabinet measures 639 × 475 × 427 mm (25.51 × 18.75 × 16.87 in). One internal brace reinforces the structure and reduces panel vibration, making it ideal for high-output systems. The design uses one L-shaped slot port with a port area suitable for high-excursion drivers and SPL-oriented use with high airflow demands. It is perfect for everyday car-audio use where trunk space and installation constraints are important, or as a general-purpose home subwoofer that balances bass extension, size, output, and low distortion.

Volume & tuning

65 l
Internal volume
33 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
18
Material thickness (inch)
3/4
Box dimensions (mm)
640 × 475 × 428
Box dimensions (inch)
25.51 × 18.75 × 16.87
Max RMS speaker power up to
700 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
15" Rectangle

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
28502
