Single 15-inch Vented / Bass-Reflex Subwoofer Box

PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

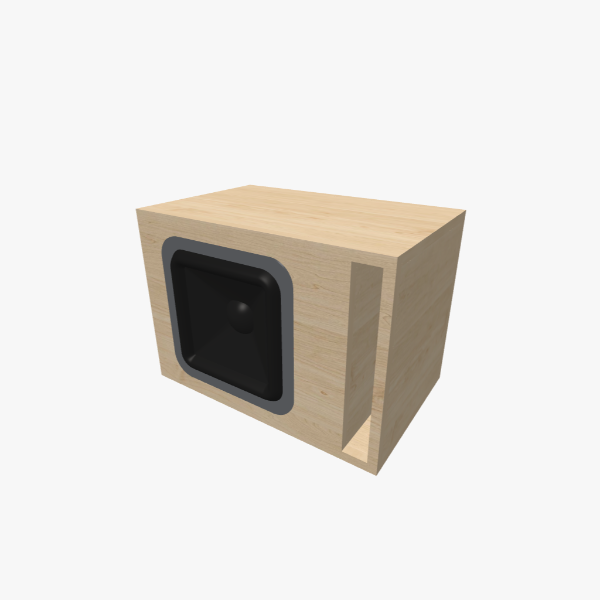

Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box with 85 L chamber, 32 Hz tuning, and one L-shaped slot port; solid exterior, 700 × 500 × 450 mm (28.01 × 19.72 × 17.75 in).

Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box with 85 L chamber, 32 Hz tuning, and one L-shaped slot port; disassembled parts, 700 × 500 × 450 mm (28.01 × 19.72 × 17.75 in).

Description

This vented (bass-reflex) enclosure is designed for a single 15-inch rectangular subwoofer, featuring an 85 L chamber tuned to 32 Hz. The cabinet is constructed from 24 mm (1 inch) material with external dimensions of 700 × 500 × 450 mm (28.01 × 19.72 × 17.75 in). It utilizes one L-shaped slot port with a port area optimized for high-output, large-excursion drivers and high-airflow SPL applications. One internal brace reinforces the cabinet and reduces panel vibration, making it suitable for high-output systems. This design serves as a general-purpose home subwoofer for music and stereo systems, balancing bass extension, size, and low distortion, while also being tailored for everyday car-audio use by considering limited trunk space, installation constraints, and balanced sound.

Volume & tuning

85 l

Internal volume

32 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

Material thickness (inch)

Box dimensions (mm)

700 × 500 × 450

Box dimensions (inch)

28.01 × 19.72 × 17.75

Max RMS speaker power up to

950 W

Speaker mounting panel layers

Single

Number of bands

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Single

Number of speakers

Speaker size

15" Rectangle

Port

Port type

Rectangular

Port count

Port area (sq.mm)

28502

Appearances

View all

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.

Similar boxes for 15" speakers

Single 15-inch rectangular Vented / Bass-Reflex Subwoofer Box - 65 L / 33 Hz

65l · 33 Hz

640 × 475 × 428 mm

Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box (65 L / 33 Hz)

65l · 33 Hz

665 × 475 × 428 mm

Single 15-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 85 L / 32 Hz

85l · 32 Hz

636 × 496 × 446 mm
