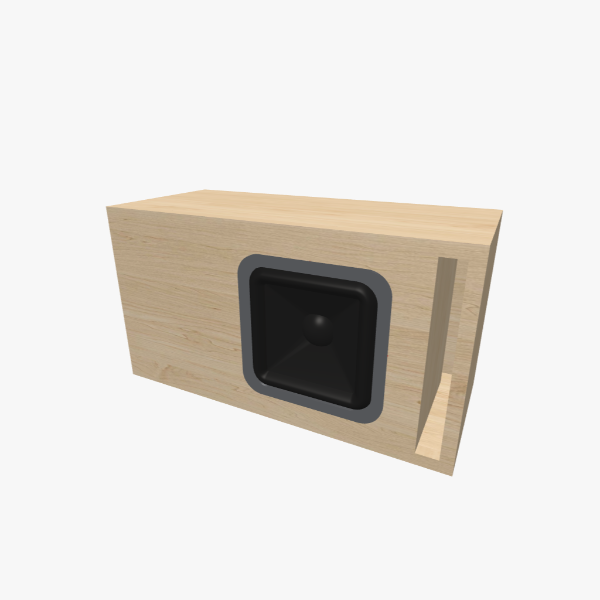

Single 8-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 15 L / 38 Hz
Description
This vented (bass-reflex) enclosure is designed for a single 8-inch rectangular subwoofer, featuring a 15 L chamber tuned to 38 Hz. Built from 18 mm (3/4 inch) material in a simple rectangle shape, the cabinet has external dimensions of 551 × 298 × 241 mm (22.21 × 11.81 × 9.53 in). It is engineered for everyday car-audio use with limited trunk space and installation constraints, while also serving as a general-purpose home subwoofer enclosure that balances bass extension, size, output, and low distortion. The design utilizes one L-shaped slot port with a port area suitable for high-output, large-excursion drivers and SPL-oriented use with high airflow demand.
Volume & tuning
15 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
18
Material thickness (inch)
3/4
Box dimensions (mm)
552 × 299 × 242
Box dimensions (inch)
22.21 × 11.81 × 9.53
Max RMS speaker power up to
1200 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
8" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
8107
