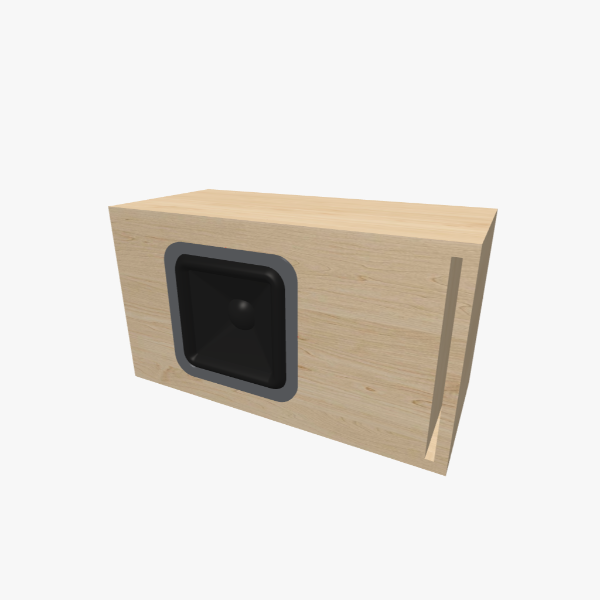

Single 8-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz
Description
This vented (bass-reflex) enclosure is designed for a single 8-inch rectangular subwoofer and features a 25 L chamber tuned to 38 Hz. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions are 521 × 292 × 238 mm (20.48 × 11.5 × 9.4 in). The design utilizes one L-shaped slot port with a port area suitable for drivers with moderate cone excursion and airflow demand. This box serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. It is also optimized for everyday car-audio use, accounting for limited trunk space, installation constraints, and balanced sound.
Volume & tuning
25 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
522 × 292 × 239
Box dimensions (inch)
20.48 × 11.5 × 9.4
Max RMS speaker power up to
1200 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
8" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
2919
