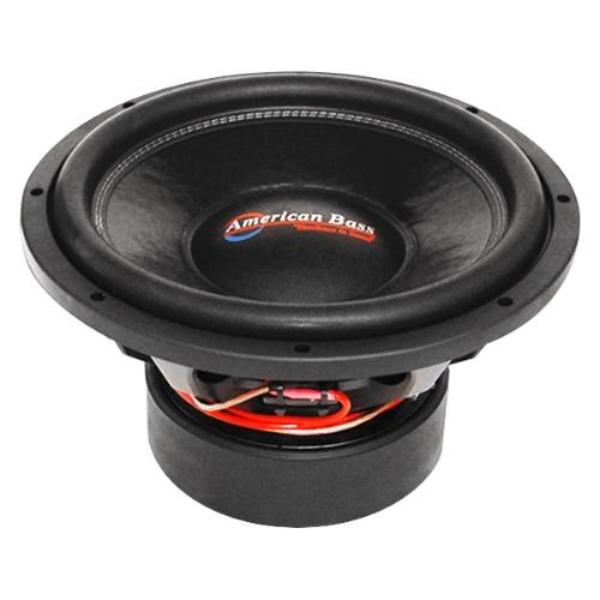

American Bass HD 15 D1
American Bass HD 15 D1
Model

American Bass HD 15 D1

Rating
DIAM
15"
FS(Hz)
32.8
VAS(l)
58.5
QTS
0.35
PWR(W)
3000
SPL(dB)
89.1
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
32.8
Vas(l)
58.5
Qts
0.35
Qms
3.9
Qes
0.385
Bl(Tm)
11.2
Mms(gr)
525
Cms(mm/N)
0.045
Rms(kg/s)
27.743
Le(mH)
0
Re(Ohm)
0.5
Sd(sq.mm)
95740
Vd(l)
2.872
X-max(mm)
30
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
228
Magnet Diameter (mm)
226

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
