Model

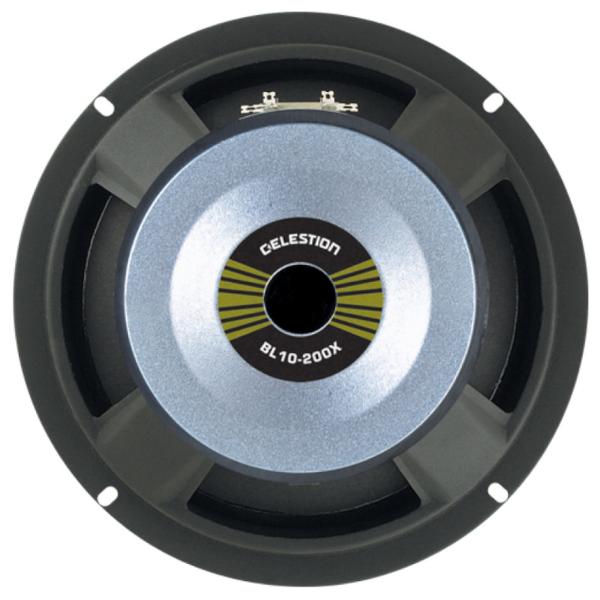

Celestion BL10-200X
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
73
VAS(l)
22.7
QTS
0.48
PWR(W)
0
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
73
Vas(l)
22.7
Qts
0.48
Qms
3.6
Qes
0.56
Bl(Tm)
13
Mms(gr)
37
Cms(mm/N)
0.13
Rms(kg/s)
4.55
Le(mH)
0.92
Re(Ohm)
5.8
Sd(sq.mm)
35119
Vd(l)
0.141
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
0
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.52
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
95.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
256
Cutout Diameter (mm)
229
Mounting Depth (mm)
110
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
