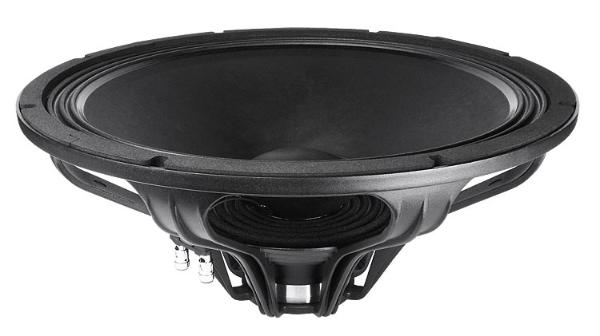

FaitalPRO 18FH500-8
FaitalPRO 18FH500-8
Model

FaitalPRO 18FH500-8

Rating
DIAM
18"
FS(Hz)
30
VAS(l)
374.8
QTS
0.35
PWR(W)
1200
SPL(dB)
96.3
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30
Vas(l)
374.8
Qts
0.35
Qms
12.5
Qes
0.36
Bl(Tm)
19
Mms(gr)
137
Cms(mm/N)
0.21
Rms(kg/s)
2.06
Le(mH)
1.35
Re(Ohm)
5
Sd(sq.mm)
113400
Vd(l)
1.055
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.71
Sensitivity(dB) 1-W
96.3
Sensitivity(dB) 2.8-V
98.4

Mounting Information

Speaker Displacement (l)
5.7
Total Diameter (mm)
460
Cutout Diameter (mm)
422
Mounting Depth (mm)
190
Magnet Diameter (mm)
130

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
