Model

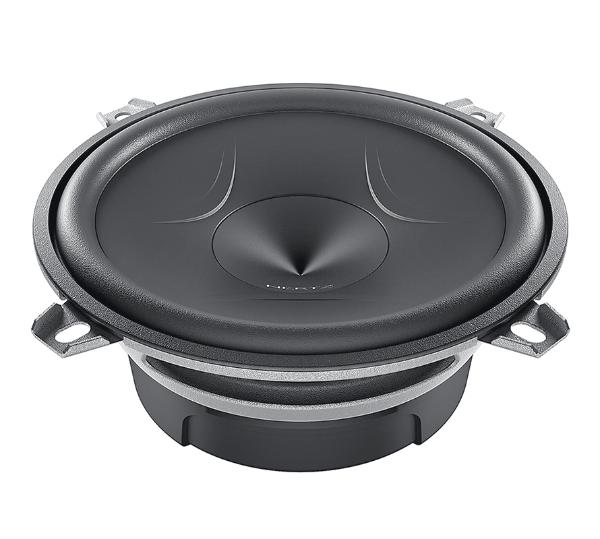

Hertz EV 130.5
Rating
DIAM
5"
FS(Hz)
82
VAS(l)
6
QTS
0.68
PWR(W)
150
SPL(dB)
88
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
82
Vas(l)
6
Qts
0.68
Qms
4.6
Qes
0.8
Bl(Tm)
4
Mms(gr)
8
Cms(mm/N)
0.47
Rms(kg/s)
0.88
Le(mH)
0.18
Re(Ohm)
3.1
Sd(sq.mm)
9527
Vd(l)
0.029
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
150
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
92.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
150
Cutout Diameter (mm)
119
Mounting Depth (mm)
50
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
