Model

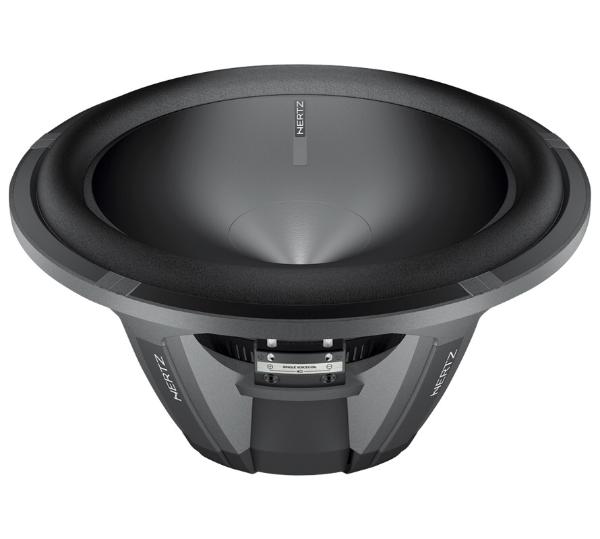

Hertz HX 380
Rating
DIAM
15"
FS(Hz)
30
VAS(l)
123.2
QTS
0.55
PWR(W)
1400
SPL(dB)
89.1
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
123.2
Qts
0.55
Qms
4.8
Qes
0.62
Bl(Tm)
13.2
Mms(gr)
204
Cms(mm/N)
0.138
Rms(kg/s)
8.011
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
79339
Vd(l)
1.111
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.5
Total Diameter (mm)
0
Cutout Diameter (mm)
351
Mounting Depth (mm)
174
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
BP4, Closed
