Model

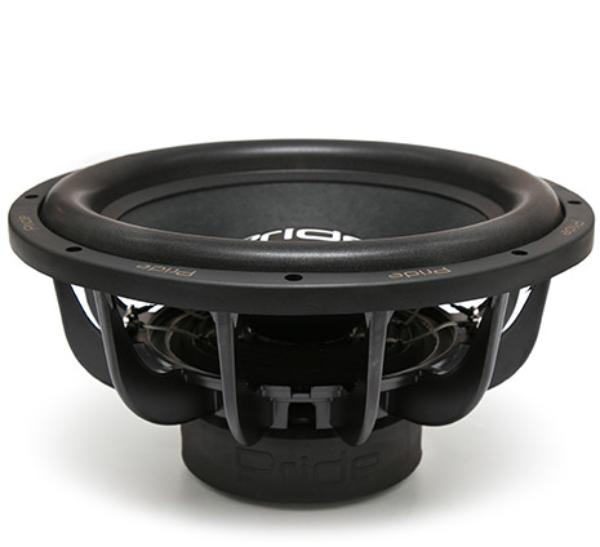

Pride AB-15D2
Rating
DIAM
15"
FS(Hz)
25
VAS(l)
95
QTS
0.42
PWR(W)
1200
SPL(dB)
0
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
95
Qts
0.42
Qms
0
Qes
0
Bl(Tm)
20
Mms(gr)
368
Cms(mm/N)
0.11
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
78000
Vd(l)
1.404
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
180
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
