Single 10-inch Round Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz

  1. Ready boxes
  2. Single 10-inch Round Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz
Use in calculator

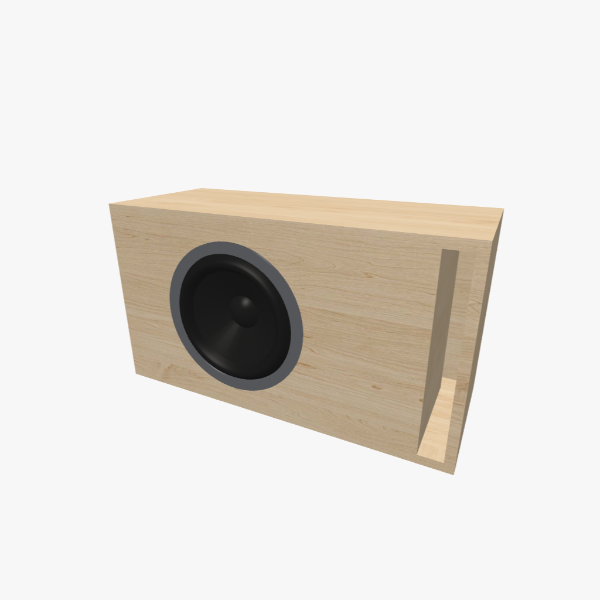

Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, solid exterior, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).
Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, solid exterior, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).
Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, solid exterior view, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).
Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, solid exterior angle, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).
Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, solid exterior perspective, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).
Single 10-inch round Vented / Bass-Reflex Subwoofer Box with 25 L chamber tuned to 38 Hz and one L-shaped slot port, disassembled parts, 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in).

Description

Designed for a single 10-inch round subwoofer, this Vented / Bass-Reflex enclosure features a 25 L chamber tuned to 38 Hz via one L-shaped slot port. The cabinet is constructed from 16 mm (5/8 inch) material in a simple rectangle shape with external dimensions of 637 × 351 × 261 mm (25.02 × 13.83 × 10.31 in). A double-thickness front baffle increases rigidity and reduces flex, making it ideal for high-output subwoofer systems. The port area is specifically optimized for high-output, large-excursion drivers and SPL-oriented use with high airflow demand. This versatile design is suitable for everyday car-audio use with limited trunk space as well as general-purpose home stereo systems, perfectly balancing bass extension, cabinet size, output, and low distortion.

Volume & tuning

25 l
Internal volume
38 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
638 × 351 × 262
Box dimensions (inch)
25.02 × 13.83 × 10.31
Max RMS speaker power up to
1300 W
Speaker mounting panel layers
Double
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10"

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
Appearances
View all
Loudspeaker enclosure with a light oak front panel.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Loudspeaker enclosure featuring an assembled front panel made of raw, unfinished cherry wood.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Loudspeaker enclosure with 12 mm rounded front edges.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Loudspeaker enclosure showing a front panel with a 12 mm chamfered edge.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
