Universal box template

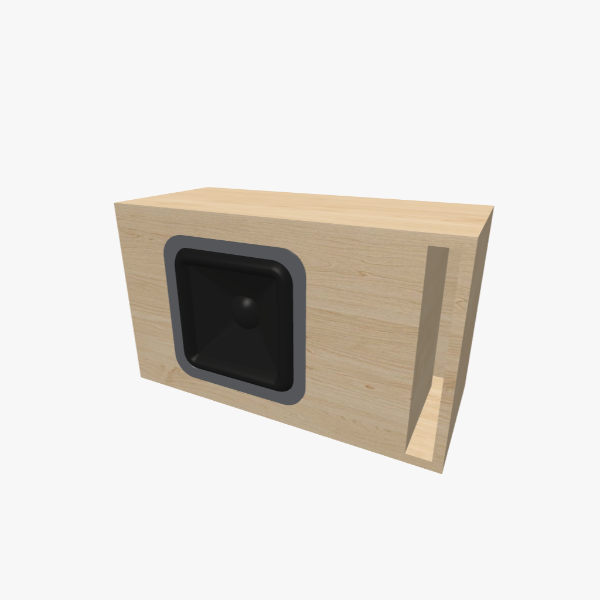

Single 10-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 10-inch rectangular subwoofer and features a 25 L chamber tuned to 38 Hz. Constructed from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions are 595 × 351 × 261 mm (23.39 × 13.83 × 10.31 in). It serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. Additionally, it is designed for everyday car-audio use, taking limited trunk space, installation constraints, and balanced sound into account. The design includes one L-shaped slot port with a port area suitable for high-output, large-excursion drivers and SPL-oriented use with high airflow demand.
Volume & tuning
25 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
595 × 351 × 262
Box dimensions (inch)
23.39 × 13.83 × 10.31
Max RMS speaker power up to
400 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
