Single 10-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 35 L / 34 Hz

  1. Ready boxes
  2. Single 10-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 35 L / 34 Hz
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

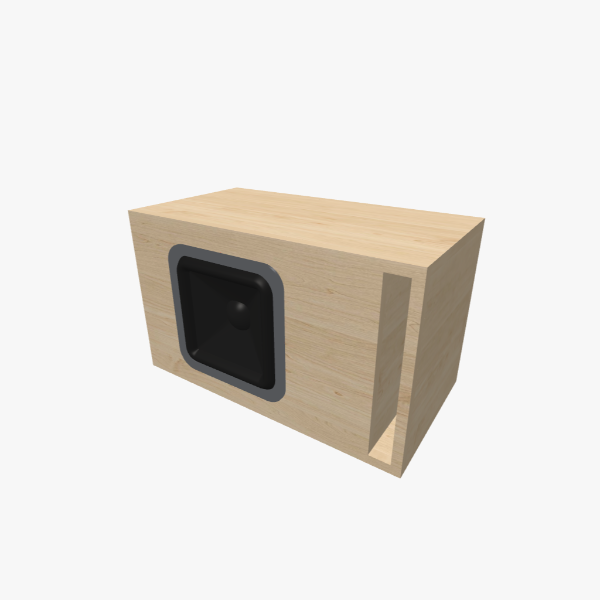

Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, solid exterior, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).
Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, solid exterior, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).
Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, solid exterior view, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).
Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, solid exterior showing cabinet depth, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).
Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, solid exterior perspective, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).
Single 10-inch rectangular vented bass-reflex subwoofer box, 35 L volume, 34 Hz tuning, L-shaped slot port, disassembled parts showing internal brace, 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in).

Description

This vented (bass-reflex) enclosure is designed for a single 10-inch rectangular subwoofer, featuring a 35 L chamber tuned to 34 Hz. Built from 18 mm (3/4 inch) material, the simple rectangle cabinet has external dimensions of 595 × 355 × 319 mm (23.85 × 14.01 × 12.61 in). It includes one internal brace to reinforce the panels and reduce vibration, making it suitable for high-output systems. The design utilizes one L-shaped slot port with an area optimized for high-output, large-excursion drivers and SPL-oriented use with high airflow demand. This enclosure is perfect for everyday car-audio use where trunk space and installation constraints are factors, or as a general-purpose home subwoofer for music and stereo systems, balancing bass extension, size, and low distortion.

Volume & tuning

35 l
Internal volume
34 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
18
Material thickness (inch)
3/4
Box dimensions (mm)
596 × 355 × 320
Box dimensions (inch)
23.85 × 14.01 × 12.61
Max RMS speaker power up to
2700 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10" Rectangle

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
Appearances
View all
Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
