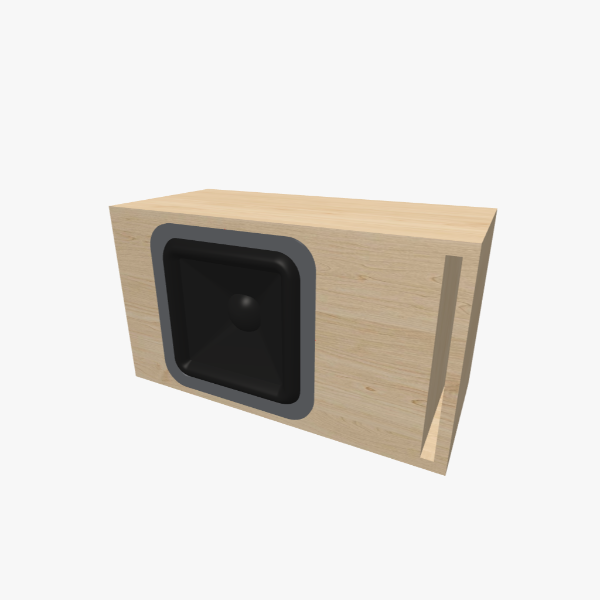

Single 10-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 10-inch rectangular subwoofer, balancing bass extension, cabinet size, output, and low distortion. It features a simple rectangle shape constructed from 16 mm (5/8 inch) material with external dimensions of 529 × 297 × 241 mm (20.78 × 11.73 × 9.5 in). The 25 L chamber is tuned to 38 Hz and utilizes one L-shaped slot port, which provides a port area suitable for drivers with moderate cone excursion and airflow demand. Whether used for everyday car audio where trunk space and installation constraints are key or as a general-purpose home subwoofer for music and stereo systems, this box delivers balanced sound.
Volume & tuning
25 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
529 × 298 × 241
Box dimensions (inch)
20.78 × 11.73 × 9.5
Max RMS speaker power up to
550 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
4560
